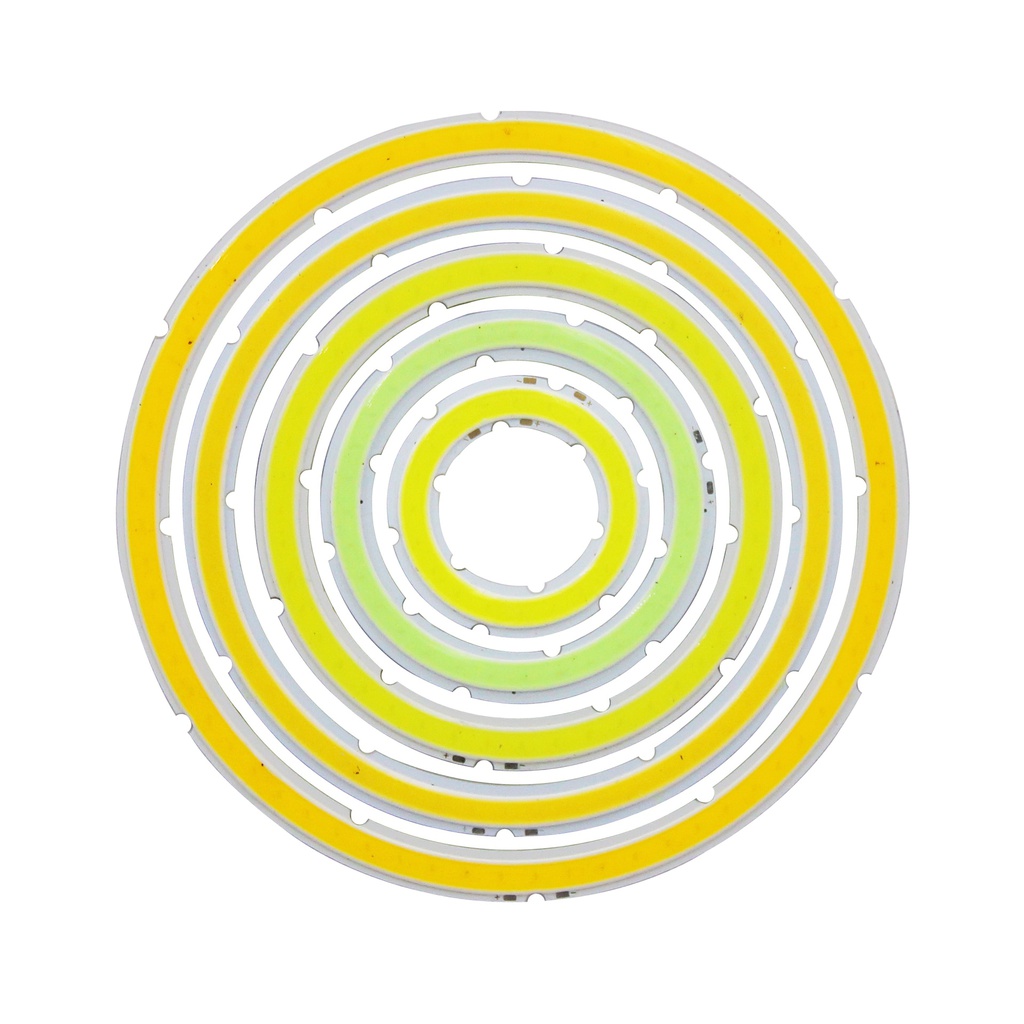

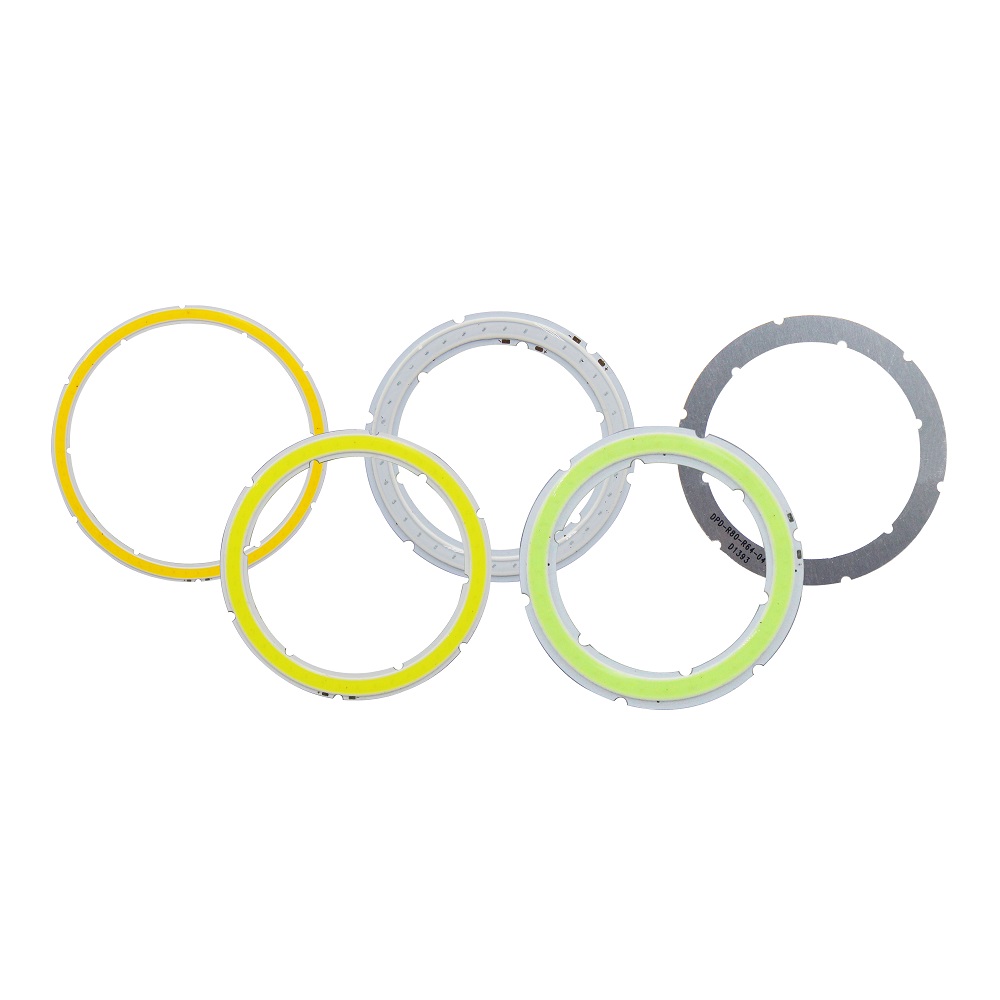

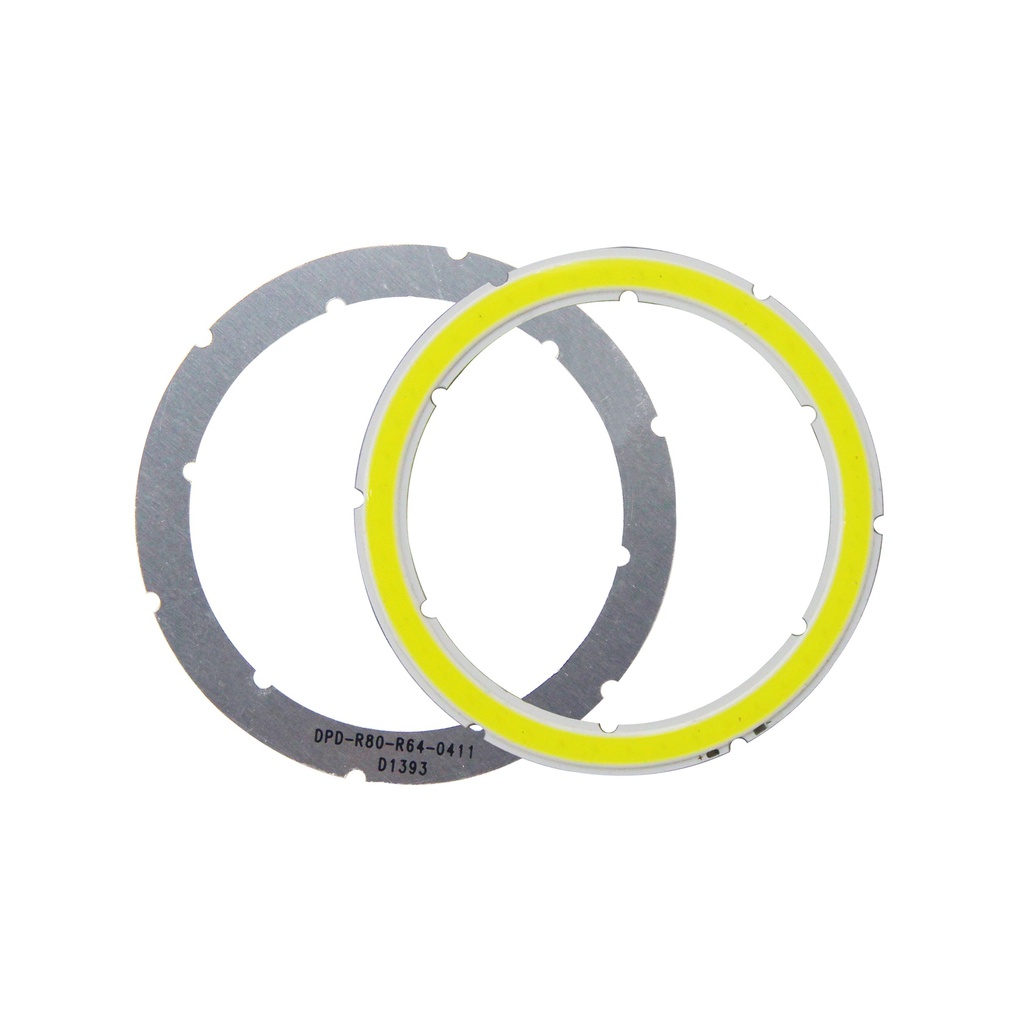

DC12V Annular Circle Angle Eye COB LED Light Source
DC12V Annular Circle Angle Eye COB LED Light Source
DC12V Annular Circle Angle Eye COB LED Light Source
DC12V Annular Circle Angle Eye COB LED Light Source
DC12V Annular Circle Angle Eye COB LED Light Source
  1. DC12V Annular Circle Angle Eye COB LED Light Source
  2. DC12V Annular Circle Angle Eye COB LED Light Source
  3. DC12V Annular Circle Angle Eye COB LED Light Source
  4. DC12V Annular Circle Angle Eye COB LED Light Source
  5. DC12V Annular Circle Angle Eye COB LED Light Source

DC12V Annular Circle Angle Eye COB LED Light Source

Days
Hours
Mins
Secs
2

$ 1.93 $ 1.93 1.93 USD

¥ 14.00

Options:
  • Emitting Color
  • Diameter

This variant cannot be purchased from the website. Please contact us for further information.

Add to Cart Buy Now
SKU:
N/A

Categories:

  • 12V COB LED ,
  • Round COB LEDs
    • Share :
    • 30-day money-back
    • 7-day returns
    • Shipping: 2-3 Days

    Parameters:


    • Type: PYCOB-angle eyes

    • Rated voltage(current): DC 12-14V

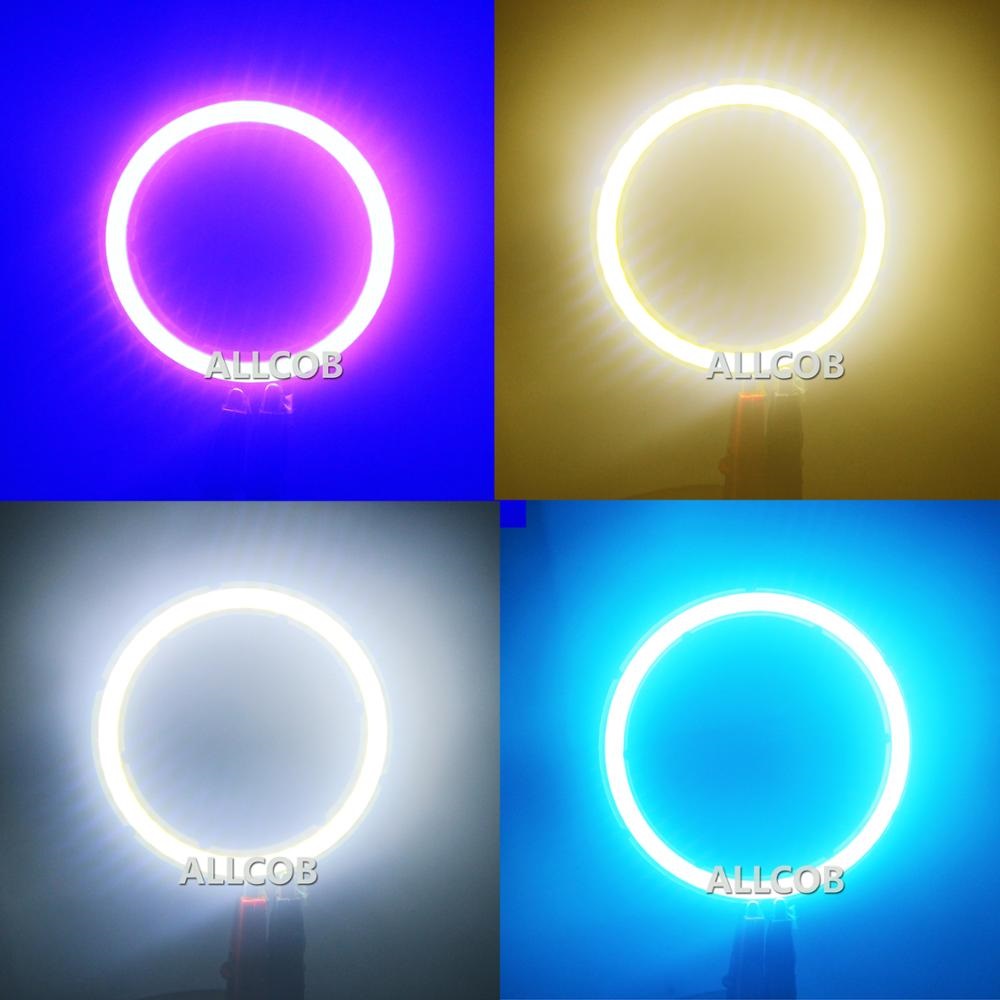

    • Emitting color(CCT):

    •                                      _ Warm white(2800-3200K)


    •                                      _ Cold white(6000-6500K)


    •                                      _ Blue(450-460nm  wavelength)


    •                                      _ Ice Blue(Cool blue)

    • Luminous Flux: >100LM/W

    • Emitting angle: 120°

    • Warranty(Correctly used): 3 years

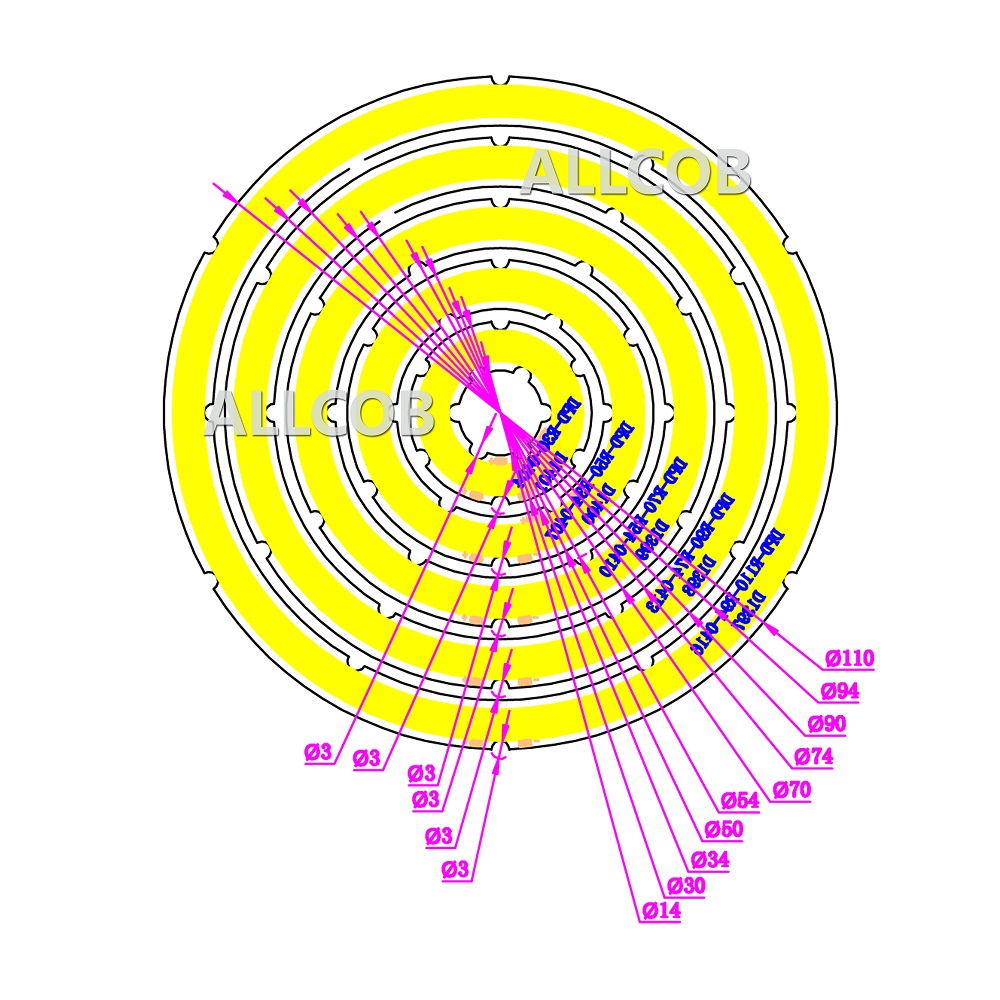

    Parameter list:


    • 25mm:   3W 12-14V  250mA(Rated current)  350mA(MAX), Outisze : Φ25mm , Insize : Φ10mm , thickness : 2.3-2.7mm

    • 30mm:   3W 12-14V  250mA(Rated current)  350mA(MAX), Outisze : Φ30mm , Insize : Φ14mm , thickness : 2.3-2.7mm

    • 40mm:   4W 12-14V  350mA(Rated current)  450mA(MAX), Outisze : Φ40mm , Insize : Φ24mm , thickness : 2.3-2.7mm

    • 45mm:   5W 12-14V  400mA(Rated current)  500mA(MAX), Outisze : Φ45mm , Insize : Φ29mm , thickness : 2.3-2.7mm

    • 50mm:   6W 12-14V  500mA(Rated current)  600mA(MAX), Outisze : Φ50mm , Insize : Φ34mm , thickness : 2.3-2.7mm

    • 60mm:   7W 12-14V  600mA(Rated current)  700mA(MAX), Outisze : Φ60mm , Insize : Φ44mm , thickness : 2.3-2.7mm

    • 65mm:   8W 12-14V  650mA(Rated current)  750mA(MAX), Outisze : Φ65mm , Insize : Φ49mm , thickness : 2.3-2.7mm

    • 70mm:   9W 12-14V  750mA(Rated current)  900mA(MAX), Outisze : Φ70mm , Insize : Φ54mm , thickness : 2.3-2.7mm

    • 80mm:   10W 12-14V 850mA(Rated current)  1000mA(MAX), Outisze : Φ80mm , Insize : Φ64mm , thickness : 2.3-2.7mm

    • 85mm:   11W 12-14V  900mA(Rated current)  1100mA(MAX), Outisze : Φ85mm , Insize : Φ69mm , thickness : 2.3-2.7mm

    • 90mm:   12W 12-14V  1000mA(Rated current)  1200mA(MAX), Outisze : Φ90mm , Insize : Φ74mm , thickness : 2.3-2.7mm

    • 100mm:  13W 12-14V  110mA(Rated current)  1300mA(MAX), Outisze : Φ100mm , Insize : Φ84mm , thickness : 2.3-2.7mm

    • 110mm:  14W 12-14V  1200mA(Rated current)  1400mA(MAX), Outisze : Φ110mm , Insize : Φ94mm , thickness : 2.3-2.7mm

    • 120mm:  15W 12-14V  1300mA(Rated current)  1500mA(MAX), Outisze : Φ120mm , Insize : Φ104mm , thickness : 2.3-2.7mm


    Specifications for DC12V Annular Circle Angle Eye COB LED Light Source

    Emitting Color White or Ice Blue or Blue or Warm White
    Diameter 25mm or 30mm or 40mm or 45mm or 50mm or 60mm or 65mm or 70mm or 80mm or 85mm or 90mm or 100mm or 110mm or 120mm

    Parameters:


    • Type: PYCOB-angle eyes

    • Rated voltage(current): DC 12-14V

    • Emitting color(CCT):

    •                                      _ Warm white(2800-3200K)


    •                                      _ Cold white(6000-6500K)


    •                                      _ Blue(450-460nm  wavelength)


    •                                      _ Ice Blue(Cool blue)

    • Luminous Flux: >100LM/W

    • Emitting angle: 120°

    • Warranty(Correctly used): 3 years

    Parameter list:


    • 25mm:   3W 12-14V  250mA(Rated current)  350mA(MAX), Outisze : Φ25mm , Insize : Φ10mm , thickness : 2.3-2.7mm

    • 30mm:   3W 12-14V  250mA(Rated current)  350mA(MAX), Outisze : Φ30mm , Insize : Φ14mm , thickness : 2.3-2.7mm

    • 40mm:   4W 12-14V  350mA(Rated current)  450mA(MAX), Outisze : Φ40mm , Insize : Φ24mm , thickness : 2.3-2.7mm

    • 45mm:   5W 12-14V  400mA(Rated current)  500mA(MAX), Outisze : Φ45mm , Insize : Φ29mm , thickness : 2.3-2.7mm

    • 50mm:   6W 12-14V  500mA(Rated current)  600mA(MAX), Outisze : Φ50mm , Insize : Φ34mm , thickness : 2.3-2.7mm

    • 60mm:   7W 12-14V  600mA(Rated current)  700mA(MAX), Outisze : Φ60mm , Insize : Φ44mm , thickness : 2.3-2.7mm

    • 65mm:   8W 12-14V  650mA(Rated current)  750mA(MAX), Outisze : Φ65mm , Insize : Φ49mm , thickness : 2.3-2.7mm

    • 70mm:   9W 12-14V  750mA(Rated current)  900mA(MAX), Outisze : Φ70mm , Insize : Φ54mm , thickness : 2.3-2.7mm

    • 80mm:   10W 12-14V 850mA(Rated current)  1000mA(MAX), Outisze : Φ80mm , Insize : Φ64mm , thickness : 2.3-2.7mm

    • 85mm:   11W 12-14V  900mA(Rated current)  1100mA(MAX), Outisze : Φ85mm , Insize : Φ69mm , thickness : 2.3-2.7mm

    • 90mm:   12W 12-14V  1000mA(Rated current)  1200mA(MAX), Outisze : Φ90mm , Insize : Φ74mm , thickness : 2.3-2.7mm

    • 100mm:  13W 12-14V  110mA(Rated current)  1300mA(MAX), Outisze : Φ100mm , Insize : Φ84mm , thickness : 2.3-2.7mm

    • 110mm:  14W 12-14V  1200mA(Rated current)  1400mA(MAX), Outisze : Φ110mm , Insize : Φ94mm , thickness : 2.3-2.7mm

    • 120mm:  15W 12-14V  1300mA(Rated current)  1500mA(MAX), Outisze : Φ120mm , Insize : Φ104mm , thickness : 2.3-2.7mm
